Plastic disc filter

Types of plastic disc filter

A plastic disc filter is a cylindrical filter that uses plastic as its main material to filter out contaminants from liquids or gases. Depending on its application, it can be used to filter out unwanted particles from irrigation systems, swimming pools, waste treatment plants, and aquaculture systems. The various types of plastic disc filters include:

• Flat screen filter

  This is a simple filter made of a flat mesh screen. The screen filters out large particles, while the gaps between the screen bars allow liquid to pass through. Flat screen filters can be used in any application that requires basic filtration. They are affordable options, but not very effective for fine filtration needs.

• Cone screen filter

  As the name suggests, this filter has a conical shape with a mesh screen wrapped around the outside. Cone screen filters are suitable for filtering liquids with a lot of solid content. They have a larger surface area than flat screens, so they don't clog up as quickly. Cone filters are commonly used in industrial processes and water treatment plants.

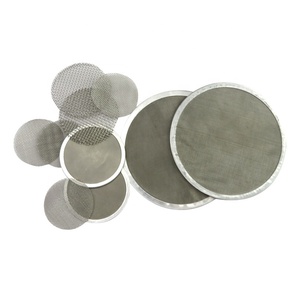

• Mesh disc filter

  Mesh disc filters are made of a series of circular mesh screens stacked on top of each other. The multiple layers provide more filtration depth, allowing both small and large particles to be captured within the filter. These filters are good for applications where the fluid contains a wide size range of solids. They can be used in irrigation systems and process water filtration.

• Cartridge disc filter

  A cartridge disc filter consists of a cylindrical cartridge containing a porous filtering material. The cartridge can be easily removed and replaced when it becomes dirty. Different types of filtering media such as activated carbon, ceramic, or fiber can be used depending on the desired level of filtration. Cartridge filters are commonly used in household water purifiers and aquariums.

• Drum screen filter

  Drum screen filters have a cylindrical mesh drum that rotates as water passes through it. The rotation helps dislodge dirt and debris stuck on the inside surface of the drum so they are washed away by clean water flowing outside the drum. This self-cleaning mechanism allows for continuous operation without manual cleaning. They are suitable for applications where the filter needs to run continuously even when suspended solids load varies over time.

Design of plastic disc filters

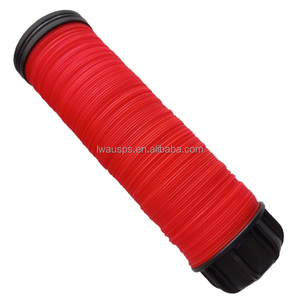

The design of plastic disc filters is a product of advanced engineering and an understanding of the needs of various industries. The primary component of the filter is the filtration screen, which is made up of a series of discs that create fine mesh patterns, allowing for selective filtration. These discs are crafted from durable plastics like polypropylene, nylon, or PVC, which can withstand corrosive substances and have a long service life. The discs typically feature varying mesh sizes, with finer meshes positioned downstream to capture smaller particles as water flows through them. This arrangement prevents clogging and maintains a consistent flow rate.

One of the key features in disc filters is their modular design. Each disc can be individually replaced without having to discard the entire filter system, making maintenance cost-effective and straightforward. Moreover, the modular configuration allows for easy scalability and customization to meet specific requirements. During assembly, these discs are stacked together, and the use of plastic bolts and nuts secures them. A sealing gasket is integrated into the design to prevent leaks and ensure that all the water is filtered through the discs.

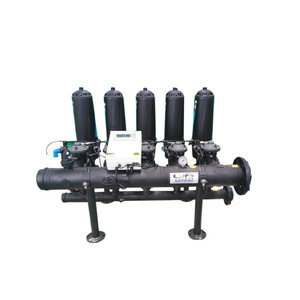

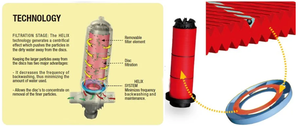

Plastic disc filters are designed to be compact and lightweight, making them easy to install and relocate as needed. They can be integrated into existing water systems with minimal disruption. Furthermore, the design includes provisions for backwashing, which allows for the reversal of water flow through the filter to dislodge and remove trapped particles. This feature is essential for maintaining the filter's efficiency and extending its operational life.

Usage scenarios of plastic disc filters

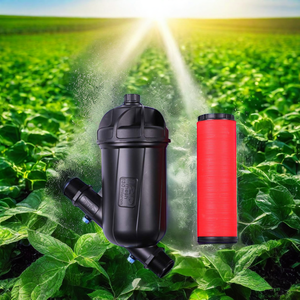

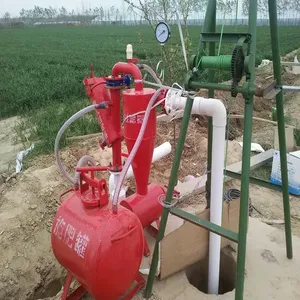

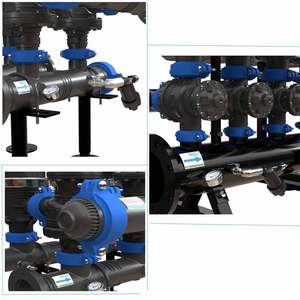

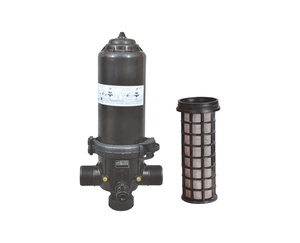

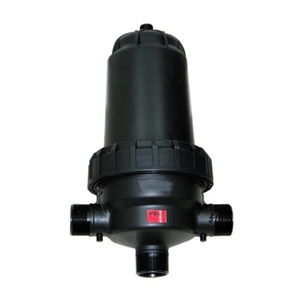

Plastic disc filters serve multiple purposes in various fields. In agriculture, they are used to keep the irrigation systems clean by trapping dirt and preventing it from clogging the pipes and emitters. This is important for delivering water efficiently to crops. In the fish farming industry, disc filters clean the water by getting rid of solid waste, which helps maintain a healthy environment for the fish to grow. Similarly, in aquaponics systems where fish and plants are grown together, disc filters remove solids from the water before it reaches the plants.

In industrial settings, plastic disc filters are used in cooling towers to filter out debris from the cooling water, preventing damage to the equipment. They are also employed in chemical processing to ensure that the fluids used in the processes are clean and free from contaminants. In laboratories, these filters provide a clean liquid supply for various experiments and help maintain the accuracy of test results.

Additionally, disc filters are used in air conditioning systems to provide filtered air. In water purification systems, they play a vital role in removing visible particles from the water, making it cleaner and safer for drinking and other uses. In automotive applications, disc filters are used to protect fuel injectors and carburetors from dirt and debris, ensuring the engine runs smoothly.

How to choose a plastic disc filter

When choosing a plastic disc filter, the following factors must be considered to ensure optimal performance for specific applications. First, define the primary purpose of the filter and the type of contaminants it must remove. Consider the maximum pressure and temperature the filter will be exposed to during operation. This will help determine the suitable materials for the filter, such as PVC, polypropylene, or nylon, which offer varying levels of chemical resistance and durability.

Next, select the appropriate mesh size or pore size for the filtration needs. A smaller mesh will capture finer particles but may lead to a higher flow resistance and potentially clogging. Assess the flow rate requirements and ensure that the filter can accommodate the desired flow. Also, consider the filter's dimensions and compatibility with the existing plumbing or equipment. Ease of maintenance and replacement should also be considered, as filters that are easy to access will save time and costs in the long run.

Q&A

Q1. What are the main advantages of using plastic disc filters over other types of filters?

A1. The main advantages of using plastic disc filters over other types of filters are their lightweight construction, corrosion resistance, and ability to withstand harsh chemicals. Moreover, they have a modular design that allows for easy maintenance and cleaning, as well as customization to suit different filtration needs.

Q2. How can one ensure proper filtration using a plastic disc filter?

A2. To ensure proper filtration using a plastic disc filter, one should select the filter based on the desired particle size and the application it is being used for. Additionally, regularly inspecting and cleaning the filter to remove any accumulated debris will help maintain its efficiency.

Q3. Where are plastic disc filters commonly used?

A3. Plastic disc filters are commonly used in irrigation systems, wastewater treatment plants, and industrial processes where filtering out dirt, rust, sand, and other particles from water or liquids is necessary.

Q4. What makes plastic disc filters cost-effective?

A4. The lightweight nature and mass production capabilities of plastic disc filter components, coupled with their easy maintenance and durability, contribute to them being cost-effective for long-term use in various applications.

Q5. How does the modular design of plastic disc filters benefit their usage?

A5. The modular design of plastic disc filters allows for easy assembly and disassembly during maintenance routines while enabling users to replace specific parts without having to discard the entire unit. This feature makes it convenient to clean the filter and customize it by adding or removing filter discs as needed.
